High accuracy of time thanks to
the GPS technology (General Positioning System)
Battery backup of the time modul
and the GPS receiver
Automatic clock refreshing after
switch on
Automatic summer/winter time mode
Signalling of the GPS status

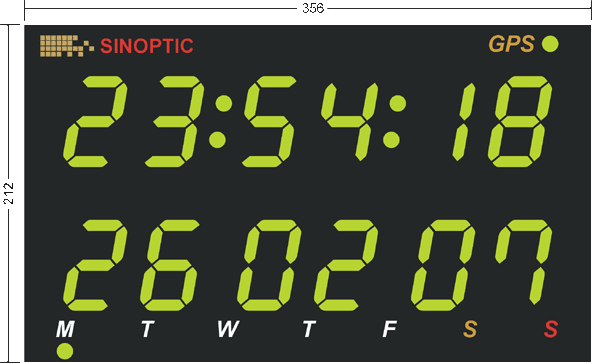

Case dedicated to the mimic board
Antenna with mounting magnet
RS485 interface for transmission
to another automatic devices
single supply voltage 12V=
current consumption 1,7A
time accuracy +/- 0,5s
length of the antena cable 6m
Structure:
The parts of the device are: active antenna of the GPS signal and receiver /
clock -"Oncore" based - GPS signal decoder. The microcontroller
send the time information to the display drivers.
Use:
U12GPS57 device is possible to use as the high accuracy wall-clock to
install in any place (disposal, clock towers, petrol stations). It is
possible to synchronize of the devices (computer, automation) network with
the U12GPS57
